Water metering

Polymer Piston 15mm, 20mm ASM Polymer bodied semi-positive rotary piston water meter 114mm, 165mm long fitted with an internal strainer, non-return valve, and sealed straight reading wet dial counter registering in m³. The meter is pulse-ready (1 pulse per half liter). Approved to Class C by the N.R.C.S. in accordance with the requirements of SANS 1529-1: 2019 and section 22 of the Legal Metrology Act 2014 (Act 9 of 2014).

LXHB domestic Brass water meter-Brochure Brass Piston 15mm, 20mm. 25mm ASM DZR brass bodied semi-positive rotary piston water meter 114mm, 165mm, 198mm long fitted with an internal strainer, non-return valve, and sealed straight reading wet dial counter registering in m³. The meter is pulse-ready (1 pulse per half litre). Approved to Class C by the N.R.C.S. in accordance with the requirements of SANS 1529-1: 2019 and section 22 of the Legal Metrology Act 2014 (Act 9 of 2014).

Ready Kit for Laison Prepaid Water Meter

Download: Precision Surface Meter Box for 15mm-20mm Brass/Plastic meter- Brochure Pre-plumbed meter installation in a surface/ground level meter box. Suitable for both domestic and small business applications.

Manuals:User Manual ZLINK Prepayment Ultrasonic Water Meter.pdfUser Manual-CIU EV900 .pdf Prepaid Residential UltrasonicSmart Water Meter ZLINK prepaid residential water meter is a static meter operatingon ultrasonic measurement technology with keypadCIU, it is tailored to new developed vending with respect toInternational STS2 standard; guaranteeing Token Algorithmsecurity, helping utility eliminate bad debt, and improvingcash management. ZLINK performs accurate metering of water consumptionwit

KEY PAD for -Hexing Prepaid Water meter zlink

Kamstrup Lid for Water Meters (flowIQ 2200 & 3200)

Download: flowIQ 2200 Data Sheet.pdf Multical 21- BrochureMULTICAL_21-Data_Sheet Installation_Guid_Cold_Water Ultrasonic flow measurement guarantees pinpoint measuring accuracy. The electronic meter has no moving parts, meaning that there is no wear and that MULTICAL? 21/flowIQ? 2101 is resistant to any impurities in the water.

Download: flowIQ 3200 Data SheetflowIQ 4200_Data_SheetElectronic Ultrasonic Meter - for measuring the distribution and consumption of cold water in blocks of flats and commercial premises.

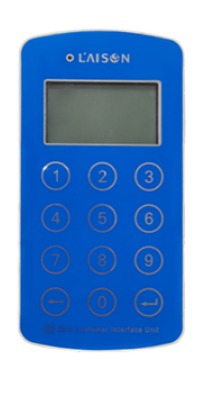

CIU keypad for use with Laison STS Prepaid water meters.

Smart Prepaid/Postpaid Water Meter Multi-Jet

Smart Prepaid/Postpaid Water Meter Multi-Jet

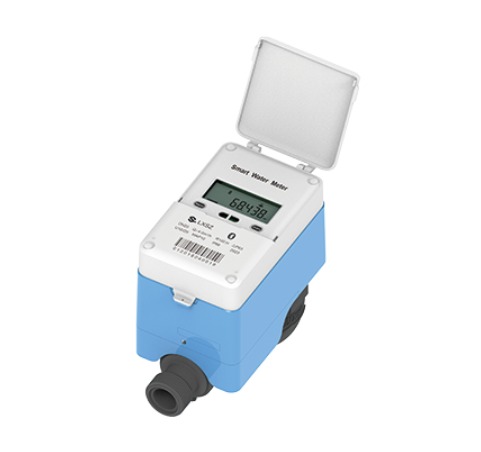

LAISON Split Type STS Prepaid Water Meter consists of two parts, namely Prepaid Water Meter, optional for Velocity type or Volumetric type which complies to STS standard IEC 62055-41,51, the solution comes with a Customer interface unit, supporting RF Wireless Communication and Dot matrix Type LCD to support local language for Remote Meter Recharge and Data Query.

Long Life batteries for Laison Prepaid water meter

waterDownload: LXSG-Brass-Class-B-multi-jet-meter-15mm-20mm-BrochureLXSG-MULTIJET BRASS 15-20-Brochure LXSG-MULTIJET BRASS 25-50-Brochure APPLICATION FEATURES• Approved to SANS1529 -1: 2019 Class B specications. (SA 1566)• For Horizontal installation.• Clear, easily read, dry dial counter. Reads to 0.0002m.• Cold water meter working temperature 50°C.• Hot water meter working temperature 90°C.• Strainer removeable for maintenance in the eld.• Working pressure 1600 kPa.• Suitable for measuring pot

Download: 40mm POLYMER MULTI-JET METER BROCHURE APPLICATION• Accurate measurement of volume of cold potable water consumption.• Suitable for both domestic and small business metering applications. FEATURES• Complies with SANS1529 -1: 2019 Class C specications.• Meter for horizontal installation.• Pulse prepared.• Clear, easily read, dry dial 6-digit counter.• Sealed dry dial register.• Working temperature between 50°C.• Internal plus removable strainer. (2 strainers).• Maximum working pressure 1

Download: LXLC infinity ECO-Bulk meterFlange Type Meter Installation_guide Measures the volume of cold water passing through a pipeline. Contains removable internal mechanism without removing meter from pipeline. Easy installation and maintenance. Dry dial register with magnetic drive. Low pressure loss. Cast Iron epoxy coated body. Pulse prepared. Resists water hammer and pollution. Verification certification available on request and each meter has a unique serial number.

Download: Flange Type Meter Installation_guide Infinity Evo 50-100mm-Brochure Infinity Evo 150, 200mm-BrochureEvo Read Switch Install Accurate measurement of the volume for cold potable water passing through a pipeline. Suitable for metering large consumers. Low flow measurement for zone metering and area monitoring and establishing minimum night flows.

Download: Pit_Antenna_flowIQ_22003200_7.5m_cable.pdf General information This external antenna fits with Kamstrup water meters.The antenna can be used for pit installation.The antenna is submersible and the antenna cable must never be shortened or damaged.The antenna consists of a circular antenna head with a fixed cable down to a capacitive click-on connection for the water meter.

Download: Infinity Evo 50-100mm-Brochure Infinity Evo 150, 200mm-BrochureEvo Read Switch Install MECHANICAL REED SWITCH - PULSER Easy to install and replace No inuence on the meter's performance Protection rating: IP68

*DAILY READINGS - 16 years battery life Download: flowIQ 2200 Data Sheet.pdf Multical 21- BrochureMULTICAL_21-Data_Sheet Installation_Guid_Cold_Water Ultrasonic flow measurement guarantees pinpoint measuring accuracy. The electronic meter has no moving parts, meaning that there is no wear and that MULTICAL? 21/flowIQ? 2101 is resistant to any impurities in the water.

Download: Inline Strainer- Brochure Protect Woltmann Water Meter from damage caused by suspended solids and debris moving through the pipeline.
